Specifications:

• Platform : AMD

• Socket : AM5

• CPU Type : Ryzen 9000, Ryzen 8000, Ryzen 7000

• Chipset : B850

• Memory Speed : up to 8200+

• Max Memory Support : 256 GB

• Supported Memory Type : DDR5

• Channel Supported : Dual Channel

• Memory Feature :

  • Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

  • Ryzen 9000 Series Processors max. overclocking frequency:

    • 1DPC 1R Max speed up to 8200+ MT/s

    • 1DPC 2R Max speed up to 6400+ MT/s

    • 2DPC 1R Max speed up to 6400+ MT/s

    • 2DPC 2R Max speed up to 6000+ MT/s

  • Supports AMD POR Speed and JEDEC Speed

  • Supports Memory Overclocking and AMD EXPO™

  • Supports Dual-Channel mode

  • Supports Non-ECC, Un-buffered memory

  • Supports CUDIMM, Clock Driver bypass mode only*

• Graphics Port : 1x HDMI, 1x DisplayPort

• Expansion Slots :

  • 1x PCI-E x16 slot

  • 2x PCI-E x1 slots

  • PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)

  • PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

  • PCI_E2 slot:

    • Supports PCIe 4.0 x16 (For Ryzen 9000/7000 Series processors)

    • Supports PCIe 4.0 x8 (For Ryzen 8700/8600/8400 Series processors)

    • Supports PCIe 4.0 x4 (For Ryzen 8500/8300 Series processor)

• Wireless Networking : WiFi 6E, Bluetooth 5.3

• Back Panel I/O Ports :

  • Clear CMOS Button

  • DisplayPort 1.4

  • 2.5G LAN

  • USB 10Gbps (Type-A)

  • Wi-Fi / Bluetooth

  • HD Audio Connectors

  • Flash BIOS Button

  • HDMI

  • USB 10Gbps (Type-A)

  • USB 10Gbps (Type-C)

  • USB 5Gbps (Type-A)

• Internal I/O Connector :

  • 1x Power Connector(ATX_PWR)

  • 2x Power Connector(CPU_PWR)

  • 1x CPU Fan

  • 1x Combo Fan (Pump_Sys Fan)

  • 3x System Fan

  • 1x EZ Conn-header (JAF_1)

  • 2x Front Panel (JFP)

  • 1x Chassis Intrusion (JCI)

  • 1x Front Audio (JAUD)

  • 1x Tuning Controller connector(JDASH)

  • 3x Addressable V2 RGB LED connector (JARGB_V2)

  • 1x RGB LED connector(JRGB)

  • 1x TPM pin header(Support TPM 2.0)

  • 4x USB 2.0 ports

  • 2x USB 5Gbps Type A ports

  • 1x USB 10Gbps Type C port

• Form Factor : Micro-ATX

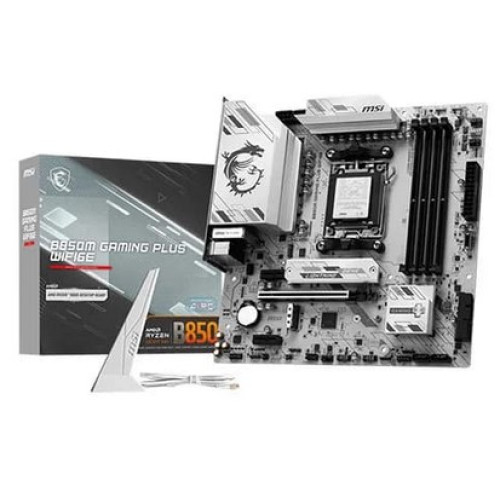

(Note: Product Image is indicative purpose only)
