Specifications:

• Platform: INTEL

• Socket: LGA1700

• CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors

• Chipset: B760

• Memory Speed: up to 6400+

• Max Memory Support: 128 GB

• Supported Memory Type: DDR5

• Channel Supported: Dual Channel

• Memory Feature:

  • Supports Intel® XMP 3.0 OC

  • Supports Dual-Controller Dual-Channel mode

  • Supports non-ECC, un-buffered memory

• Graphics Port: 1x HDMI, 1x DisplayPort, 1x D-Sub

• Expansion Slots:

  • 1x PCI-E x16 slot

  • 1x PCI-E x1 slot

  • PCI_E1 Gen PCIe 4.0 supports up to (From CPU)

  • PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

• Wireless Networking: WiFi 6E, Bluetooth 5.3

• Back Panel I/O Ports:

  • HDMI, VGA, DisplayPort

  • Keyboard / Mouse

  • 2.5G LAN

  • Wi-Fi / Bluetooth

  • Audio Connectors

  • USB 2.0

  • USB 3.2 Gen 1 5Gbps (Type-A)

• Internal I/O Connector:

  • 1x Power Connector (ATX_PWR)

  • 1x Power Connector (CPU_PWR)

  • 1x CPU Fan

  • 2x System Fan

  • 2x Front Panel (JFP)

  • 1x Chassis Intrusion (JCI)

  • 1x Front Audio (JAUD)

  • 1x Com Port (JCOM)

  • 2x Addressable V2 RGB LED connector (JARGB_V2)

  • 1x RGB LED connector (JRGB)

  • 1x TPM pin header (Supports TPM 2.0)

  • 4x USB 2.0 ports

  • 2x USB 5Gbps Type-A ports

• Form Factor: Micro-ATX

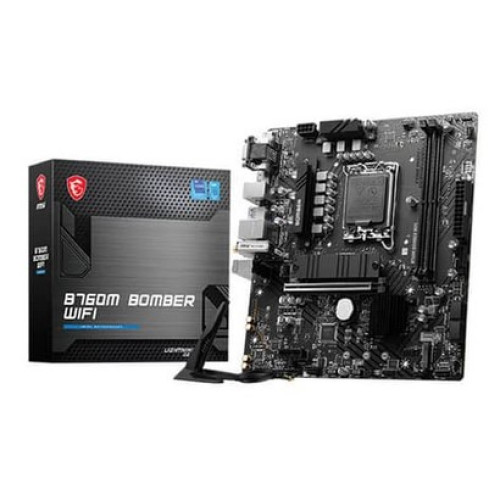

(Note: Product Image is indicative purpose only)
