Specifications:

• Platform: AMD

• Socket: AM5

• CPU Type: Ryzen 9000, Ryzen 8000, Ryzen 7000

• Chipset: B840

• Memory Speed: up to 8000+

• Max Memory Support: 256 GB

• Supported Memory Type: DDR5

• Channel Supported: Dual Channel

• Memory Feature:

  • Supports AMD POR Speed and JEDEC Speed

  • Supports Memory Overclocking and AMD EXPOTM

  • Supports Dual-Channel mode

  • Supports Non-ECC, Un-buffered memory

  • Supports CUDIMM, Clock Driver bypass mode only*

  • *CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. See Memory Compatibility List on product Support page.

• Graphics Port: 1 x HDMI

• Expansion Slots:

  • 2 x PCI-E x16 slots

  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

  • PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

  • PCI_E1 slot:

    • Supports PCIe 4.0 x16 (For Ryzen 9000/7000 Series processors)

    • Supports PCIe 4.0 x8 (For Ryzen 8700/8600/8400 Series processors)

    • Supports PCIe 4.0 x4 (For Ryzen 8500/8300 Series processors)

• Wireless Networking: Wi-Fi 6E, Bluetooth 5.3

• Back Panel I/O Ports:

  • Clear CMOS Button

  • USB 10Gbps Type-A

  • USB 2.0

  • 2.5G LAN

  • Wi-Fi / Bluetooth

  • Audio connectors

  • Flash BIOS Button

  • HDMI

  • USB 10Gbps Type-C

  • USB 5Gbps

• Internal I/O Connector:

  • 1 x Power Connector (ATX_PWR)

  • 1 x Power Connector (CPU_PWR)

  • 1 x CPU Fan

  • 1 x Combo Fan (Pump_Sys Fan)

  • 3 x System Fan

  • 1 x EZ Conn-header (JAF_1)

  • 2 x Front Panel (JFP)

  • 1 x Chassis Intrusion (JCI)

  • 1 x Front Audio (JAUD)

  • 1 x Com Port (JCOM)

  • 1 x Tuning Controller connector (JDASH)

  • 3 x Addressable V2 RGB LED connector (JARGB_V2)

  • 1 x RGB LED connector (JRGB)

  • 1 x TPM pin header (Support TPM 2.0)

  • 4 x USB 2.0 ports

  • 2 x USB 5Gbps Type A ports

  • 1 x USB 5Gbps Type C ports

• Form Factor: Micro-ATX

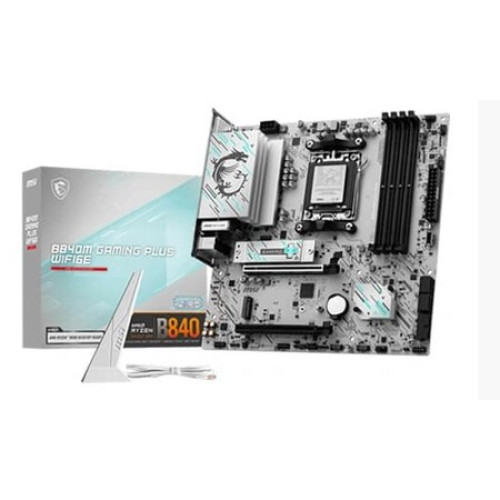

(Note: Product Image is indicative purpose only)
