Motherboard Specification

Specifications:

• Platform: AMD

• Socket: AM4

• CPU Type: Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000

• Chipset: B550

• Memory Speed: Up to 5100

• Max Memory Support: 64 GB

• Supported Memory Type: DDR4

• Channel Supported: Dual Channel

• Memory Feature:

  • ECC memory (ECC mode) support varies by CPU

  • Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration (refer to brand website for details)

• Graphics Port: 1 x DisplayPort, 1 x HDMI

Expansion Slots:

• For AMD Ryzen™ 5000 / 3000 Series Desktop Processors:

  • 1 x PCIe 4.0 x16 slot (supports x16 mode)

• For AMD Ryzen™ 5000 G-Series / 4000 G-Series Desktop Processors:

  • 1 x PCIe 3.0 x16 slot (supports x16 mode)

• AMD B550 Chipset:

  • 1 x PCIe 3.0 x1 slot

Back Panel I/O Ports:

• 4 x USB 3.2 Gen 1 (5Gbps) ports (4 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x DisplayPort

• 1 x HDMI port

• 1 x Realtek 1Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

• Fan and Cooling Related:

  • 1 x 4-pin CPU Fan header

  • 2 x 4-pin Chassis Fan headers

• Power Related:

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V Power connector

• Storage Related:

  • 2 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

• USB:

  • 1 x USB 3.2 Gen 1 (5Gbps) connector (supports USB Type-C)

  • 1 x USB 3.2 Gen 1 (5Gbps) header (supports 2 additional USB 3.2 Gen 1 ports)

  • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)

• Miscellaneous:

  • 3 x Addressable Gen 2 headers

  • 1 x Clear CMOS header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (AAFP)

  • 1 x S/PDIF Out header

  • 1 x Speaker header

  • 1 x SPI TPM header (14-1 pin)

  • 1 x 10-1 pin System Panel header

• Form Factor: Micro-ATX

• Warranty: 3 Years

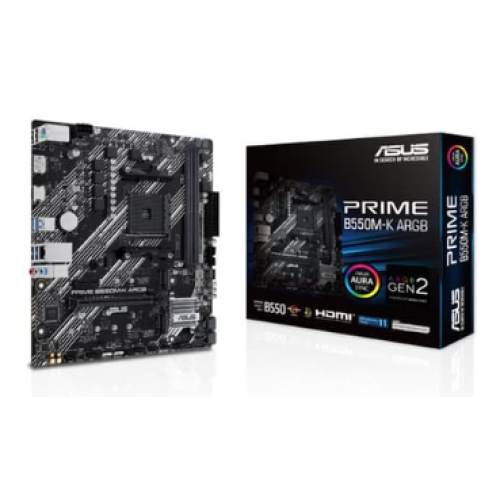

(Note: Product Image is indicative purpose only)
