Specifications:

• Platform : AMD

• Socket : AM5

• CPU Type : Ryzen 9000, Ryzen 8000, Ryzen 7000

• Chipset : B650

• Memory Speed : up to 8000+

• Max Memory Support : 256 GB

• Supported Memory Type : DDR5

• Channel Supported : Dual Channel

• Memory Feature : ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)

  • Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to CPU/Memory Support list under the Support tab of the product information site or visit ASUS website.

  • Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics Port : 2 x DisplayPort, 1 x HDMI

• Expansion Slots :

  • AMD Ryzen 9000 & 7000 Series Desktop Processors : 1 x PCIe 5.0 x16 slot (supports x16 mode)

  • AMD Ryzen 8000 Series Desktop Processors : 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

  • AMD B650 Chipset : 1 x PCIe 4.0 x16 slot (supports x1 mode)

  • Note : Specifications vary by CPU types.

• Wireless Networking : Wi-Fi 6, Bluetooth v5.4

• Back Panel I/O Ports :

  • 2 x USB 10Gbps ports (Type-A)

  • 2 x USB 5Gbps ports (Type-A)

  • 4 x USB 2.0 ports (Type-A)

  • 2 x DisplayPort

  • 1 x HDMI port

  • 1 x Wi-Fi module

  • 1 x Realtek 2.5Gb Ethernet port

  • 3 x Audio jacks

  • 1 x BIOS FlashBack button

• Internal I/O Connector :

  • Fan and Cooling Related

    • 1 x 4-pin CPU Fan header

    • 1 x 4-pin CPU OPT Fan header

    • 1 x 4-pin AIO Pump header

    • 3 x 4-pin Chassis Fan headers

  • Power Related

    • 1 x 24-pin Main Power connector

    • 1 x 8-pin +12V CPU Power connector

    • 1 x 4-pin +12V CPU Power connector

  • Storage Related

    • 3 x M.2 slots (Key M)

    • 4 x SATA 6Gb/s ports

  • USB

    • 1 x USB 5Gbps connector (supports USB Type-C)

    • 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)

    • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)

  • Miscellaneous

    • 3 x Addressable RGB Gen 2 headers

    • 1 x Clear CMOS header

    • 1 x Chassis Intrusion header

    • 1 x COM Port header

    • 1 x Front Panel Audio header (F_AUDIO)

    • 1 x S/PDIF Out header

    • 1 x SPI TPM header (14-1 pin)

    • 1 x 10-1 pin Front Panel System header

• Form Factor : Micro-ATX

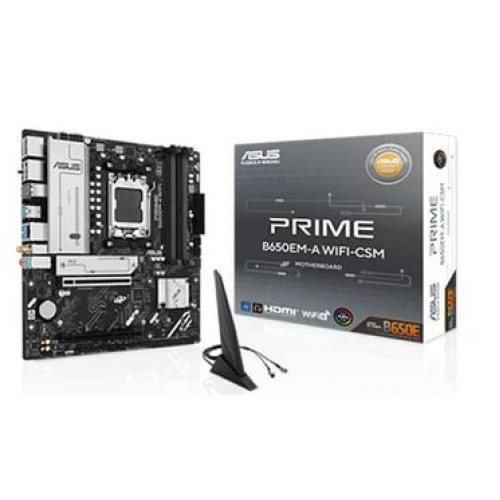

(Note: Product Image is indicative purpose only)
