Motherboard Specification:

• Platform: Intel

• Socket: LGA1851

• CPU Type: Core Ultra

• Chipset: B860

• Memory Speed: up to 8800+ MHz

• Max Memory Support: 128 GB

• Supported Memory Type: DDR5

• Channel Supported: Dual Channel

• Memory Feature:

  • DIMM Fit

  • Supports Intel® Extreme Memory Profile (XMP) modules

  • ASUS Enhanced Memory Profile III (AEMPIII)

  • Supported memory types, speeds, and DRAM module count vary by CPU and memory configuration.

  • Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

• Graphics Port:

  • 1 x DisplayPort

  • 1 x HDMI

• Expansion Slots:

  • CPU: 1 x PCIe 4.0 x16 slot

  • Chipset: 2 x PCIe 4.0 x1 slots

  • Refer to Brand Site for supported peripherals

• Back Panel I/O Ports:

  • 1 x USB 10Gbps (Type-A)

  • 2 x USB 5Gbps (Type-A)

  • 3 x USB 2.0 (Type-A)

  • 1 x DisplayPort

  • 1 x HDMI port

  • 1 x Realtek 2.5Gb Ethernet port

  • 3 x Audio jacks

  • 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connector:

  • 1 x 4-pin CPU Fan header

  • 2 x 4-pin Chassis Fan headers

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V CPU Power connector

  • 2 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

  • 1 x USB 5Gbps connector (supports USB Type-C®)

  • 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)

  • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)

  • 2 x Addressable Gen2 headers

  • 1 x Aura RGB header

  • 1 x Clear CMOS header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x S/PDIF Out header

  • 1 x SPI TPM header (14-1 pin)

  • 1 x 10-1 pin Front Panel System header

• Form Factor: Micro-ATX

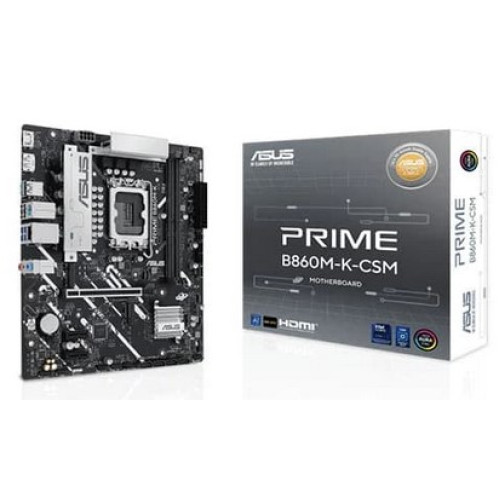

(Note: Product image is indicative only)
