(To fix this product in your Doorstep, Contact our below listed Service centre)

Specification:

Capacity:

• VA / W : 600 VA / 360 W

Output:

• Waveform (Battery Mode) : Simulated Sine Wave

• Transfer Time : Typical 4–8 ms, Max 13 ms

• Frequency Range (Battery Mode) : 50 Hz ± 1%

• Output Voltage : 230 V AC ± 10%

LED Indicators:

• Fault : Green Off

• Battery Mode : Green Flashing

• AC Mode : Green Lighting

Protection:

• Full Protection : Overload, Discharge, and Overcharge Protection

Environment:

• Noise Level : Less than 40 dB

• Humidity : 0–90% RH @ 0–40°C (Non-condensing)

Input:

• Frequency Range : 50 Hz (Auto-sensing)

• Voltage Range : 140 – 300 V AC

• Voltage : 230 V AC

Battery:

• Typical Recharge Time : 4 hours (recover to 90% capacity)

• Backup Time : 35 mins

• Battery Type : 1 x 12V / 7 Ah

Alarm:

• Fault : Continuous Sound Beep

• Overload : Every 0.5 second Sound Beep

• Low Battery : Every second Sound Beep

• Battery Mode : Every 10 seconds Sound Beep

Physical:

• Net Weight : 4.2 kg

• Dimension (D x W x H) : 279 x 101 x 142 mm

• Power Outlet : 3 Outlets

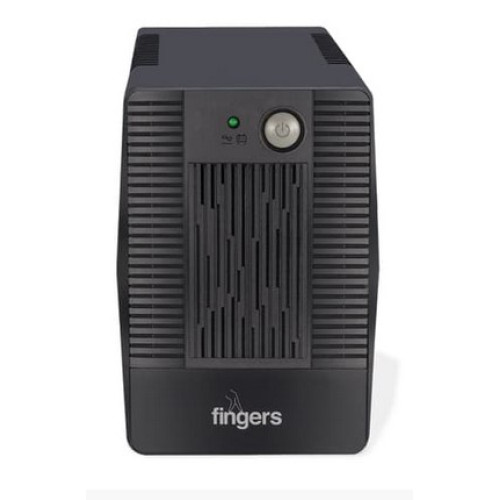

(Note: Product Image is indicative purpose only)
