Motherboard Specification

Specifications:

• Platform: Intel

• Socket: LGA1700

• CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium, Celeron

• Chipset: H610

• Memory Speed: Up to 3200

• Max Memory Support: 64 GB

• Supported Memory Type: DDR4

• Channel Supported: Dual Channel

• Memory Feature: Supports non-ECC, un-buffered memory

• Graphics Port: 1 x HDMI

• Expansion Slots:

  • 1 x PCI-E x16 slot

  • 1 x PCI-E x1 slot

    • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Wireless Networking: WiFi 6E, Bluetooth 5.3

Back Panel I/O Ports:

• 1 x HDMI

• 1 x USB 3.2 Gen 1 (5Gbps, Type-A)

• 2 x USB 2.0

• 1 x LAN port

• 1 x Audio connectors

Internal I/O Connectors:

• 1 x Power Connector (ATX_PWR)

• 1 x Power Connector (CPU_PWR)

• 1 x CPU Fan

• 1 x System Fan

• 2 x Front Panel (JFP)

• 1 x Chassis Intrusion (JCI)

• 1 x Front Audio (JAUD)

• 1 x COM Port (JCOM)

• 1 x TPM pin header (Supports TPM 2.0)

• 4 x USB 2.0 ports

• Form Factor: Micro-ATX

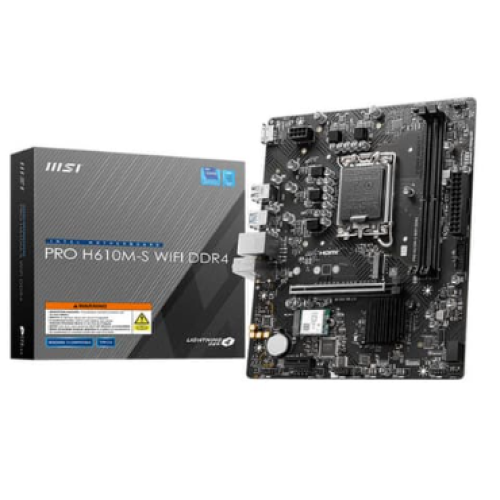

(Note: Product Image is indicative purpose only)
