Specifications:

• Platform: INTEL

• Socket: LGA1700

• CPU Type: 14th Gen, 13th Gen, 12th Gen

• Chipset: B760

• Memory Speed: up to 7200+

• Max Memory Support: 256 GB

• Supported Memory Type: DDR5

• Channel Supported: Dual Channel

• Memory Feature:

  • Supports non-ECC, un-buffered memory

  • Supports Intel Extreme Memory Profile (XMP) 3.0

• Graphics Port: 1 x HDMI 2.1, 1 x DisplayPort 1.4

• Expansion Slots:

  • CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

  • Chipset:

    • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*

    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    • Supports AMD CrossFire

• Back Panel I/O Ports:

  • 2 x Antenna Ports

  • 1 x PS/2 Mouse/Keyboard Port

  • 1 x HDMI Port

  • 1 x DisplayPort 1.4

  • 1 x USB 3.2 Gen1 Type-C Port

  • 3 x USB 3.2 Gen1 Type-A Ports

  • 2 x USB 2.0 Ports

  • 1 x RJ-45 LAN Port

  • HD Audio Jacks: Line in / Front Speaker / Microphone

• Internal I/O Connector:

  • 1 x SPI TPM Header

  • 1 x Chassis Intrusion and Speaker Header

  • 1 x CPU Fan Connector (4-pin)*

  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

  • 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***

  • 1 x 24-pin ATX Power Connector

  • 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

  • 1 x Front Panel Audio Connector

  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• Form Factor: Micro-ATX

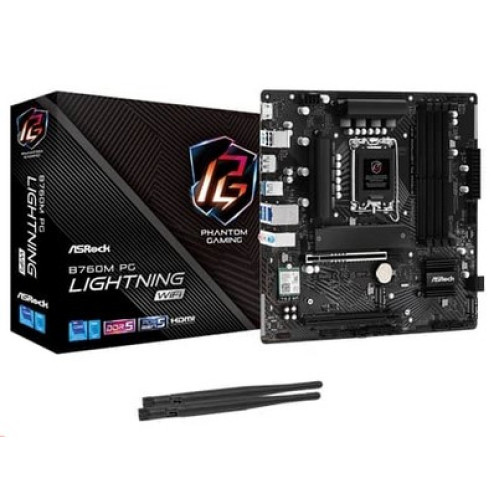

(Note: Product Image is indicative purpose only)
