Motherboard Specification:

• Platform: INTEL

• Socket: LGA1851

• CPU Type: Core Ultra

• Chipset: B860

• Memory Speed: up to 9066 MHz

• Max Memory Support: 256 GB

• Supported Memory Type: DDR5

• Channel Supported: Dual Channel

• Memory Feature:

  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  • Support for Extreme Memory Profile (XMP) memory modules

  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Refer to the Memory Support List on the brand’s website for details.)

• Graphics Port:

  • 1 x HDMI

  • 2 x DisplayPort

• Expansion Slots:

  • CPU:

    • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    • The PCIEX16 slot can only support a graphics card or an NVMe SSD.

  • Chipset:

    • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)

• Back Panel I/O Ports:

  • 1 x PS/2 keyboard/mouse port

  • 1 x HDMI port (Note: Actual support may vary by CPU)

  • 2 x DisplayPorts (Note: Actual support may vary by CPU)

  • 1 x USB 3.2 Gen 2 Type-A port (red)

  • 2 x USB 3.2 Gen 1 ports

  • 3 x USB 2.0/1.1 ports

  • 1 x RJ-45 LAN port

  • 3 x Audio jacks

• Internal I/O Connector:

  • 1 x 24-pin ATX main power connector

  • 1 x 8-pin ATX 12V power connector

  • 1 x CPU fan header

  • 1 x CPU fan/water cooling pump header

  • 1 x system fan header

  • 1 x system fan/water cooling pump header

  • 3 x addressable RGB Gen2 LED strip headers

  • 1 x RGB LED strip header

  • 2 x M.2 Socket 3 connectors

  • 4 x SATA 6Gb/s connectors

  • 1 x front panel header

  • 1 x front panel audio header

  • 1 x USB Type-C® header with USB 3.2 Gen 1 support

  • 1 x USB 3.2 Gen 1 header

  • 2 x USB 2.0/1.1 headers

  • 1 x Trusted Platform Module (TPM) header (For GC-TPM2.0 SPI/2.0/V2 module)

  • 1 x Q-Flash Plus button

  • 1 x reset jumper

  • 1 x Clear CMOS jumper

• Form Factor: Micro-ATX

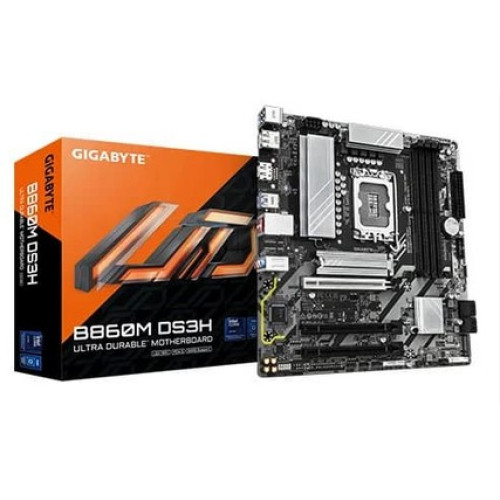

(Note: Product image is for indicative purposes only)
