Motherboard Specification:

• Platform: AMD

• Socket: AM5

• CPU Type: Ryzen 9000, Ryzen 8000, Ryzen 7000

• Chipset: B850

• Memory Speed: up to 8200 MHz

• Max Memory Support: 256 GB

• Supported Memory Type: DDR5

• Channel Supported: Dual Channel

• Memory Feature:

  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  • Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  • (CPU and memory configuration may affect supported memory types, speed, and number of DRAM modules. Refer to Memory Support List on GIGABYTE’s website for details.)

• Graphics Port:

  • 1 x HDMI

  • 2 x DisplayPort

• Expansion Slots:

  • 1 x PCI Express x16 slot (PCIEX16), integrated in CPU:

    • Ryzen 9000/7000 Series: PCIe 5.0 x16 mode

    • Ryzen 8000 Phoenix 1: PCIe 4.0 x8 mode

    • Ryzen 8000 Phoenix 2: PCIe 4.0 x4 mode

    • (PCIEX16 slot supports only a graphics card or NVMe SSD. Install a single GPU in PCIEX16 slot.)

  • 1 x PCI Express x16 slot (PCIEX4), Chipset, PCIe 3.0 x4

• Back Panel I/O Ports:

  • 1 x HDMI port

  • 2 x DisplayPorts

  • 1 x Q-Flash Plus button

  • 1 x PS/2 keyboard/mouse port

  • 1 x USB 3.2 Gen 2 Type-A port (red)

  • 1 x USB Type-C® port (USB 3.2 Gen 2)

  • 2 x USB 3.2 Gen 1 ports

  • 4 x USB 2.0/1.1 ports

  • 1 x RJ-45 LAN port

  • 3 x Audio jacks

• Internal I/O Connector:

  • 1 x 24-pin ATX main power connector

  • 1 x 8-pin ATX 12V power connector

  • 1 x CPU fan header

  • 1 x CPU fan/water cooling pump header

  • 1 x system fan header

  • 1 x system fan/water cooling pump header

  • 3 x addressable RGB Gen2 LED strip headers

  • 1 x RGB LED strip header

  • 4 x SATA 6Gb/s connectors

  • 2 x M.2 Socket 3 connectors

  • 1 x front panel header

  • 1 x front panel audio header

  • 1 x USB Type-C® header (USB 3.2 Gen 2)

  • 1 x USB 3.2 Gen 1 header

  • 2 x USB 2.0/1.1 headers

  • 1 x Trusted Platform Module header (GC-TPM2.0 SPI/2.0/V2 only)

  • 1 x reset button

  • 1 x reset jumper

  • 1 x Clear CMOS jumper

• Form Factor: Micro-ATX

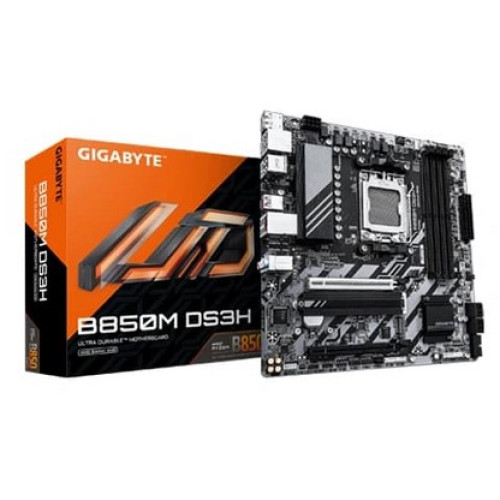

(Note: Product image is indicative only)
