Motherboard Specification:

• Platform: Intel

• Socket: LGA1700

• CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors

• Chipset: B760

• Memory Speed: up to 5333 MHz

• Max Memory Support: 128 GB

• Supported Memory Type: DDR4

• Channel Supported: Dual Channel

• Memory Feature:

  • Supports Dual-Channel mode

  • Supports non-ECC, un-buffered memory

  • Supports Intel Extreme Memory Profile (XMP)

• Graphics Port:

  • 2 x HDMI

  • 2 x DisplayPort

• Expansion Slots:

  • 2 x PCI-E x16 slots

  • 1 x PCI-E x1 slot

  • PCI_E1: PCIe 4.0, up to x16 (From CPU)

  • PCI_E2: PCIe 3.0, up to x1 (From Chipset)

  • PCI_E3: PCIe 4.0, up to x4 (From Chipset)

• Wireless Networking: WiFi 6E, Bluetooth 5.3

• Back Panel I/O Ports:

  • Keyboard / Mouse

  • DisplayPort

  • USB 3.2 Gen 1 5Gbps (Type-A)

  • 2.5G LAN

  • Wi-Fi / Bluetooth

  • Audio Connectors

  • USB 2.0

  • HDMI

  • USB 3.2 Gen 2 10Gbps (Type-A)

• Internal I/O Connector:

  • 1 x ATX Power Connector (ATX_PWR)

  • 2 x CPU Power Connectors (CPU_PWR)

  • 1 x CPU Fan Header

  • 1 x Pump Fan Header

  • 2 x System Fan Headers

  • 2 x Front Panel Headers (JFP)

  • 1 x Chassis Intrusion Header (JCI)

  • 1 x Front Audio Header (JAUD)

  • 1 x COM Port Header (JCOM)

  • 2 x Addressable V2 RGB LED Headers (JARGB_V2)

  • 1 x RGB LED Header (JRGB)

  • 1 x TPM Pin Header (Supports TPM 2.0)

  • 4 x USB 2.0 ports

  • 4 x USB 5Gbps Type-A ports

  • 1 x USB 5Gbps Type-C port

• Form Factor: Micro-ATX

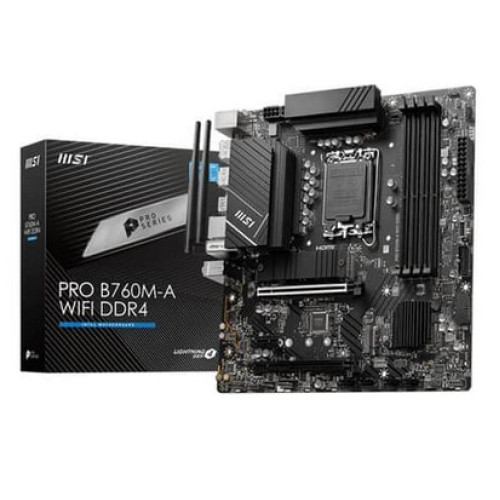

(Note: Product image is indicative only)
