Specifications:

• Platform: AMD

• Socket: AM4

• CPU Type: Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000G, Ryzen 3000

• Chipset: B550

• Memory Speed: up to 3200

• Max Memory Support: 128 GB

• Supported Memory Type: DDR4

• Channel Supported: Dual Channel

• Memory Feature:

  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  • Support for Extreme Memory Profile (XMP) memory modules

  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules; please refer to "Memory Support List" on the Brand website for more information)

• Graphics Port: 1 x HDMI port

• Expansion Slots:

  • CPU: 1 x PCI Express x16 slot (PCIEX16)

    • AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode

    • AMD Ryzen 5000G/4000G/3000G Series Processors support PCIe 3.0 x16 mode

    • The PCIEX16 slot can only support a graphics card or an NVMe SSD

  • Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)

• Wireless Networking: WiFi 6, Bluetooth 5.0

• Back Panel I/O Ports:

  • 4 x USB 2.0/1.1 ports

  • 2 x antenna connectors (1T1R)

  • 1 x HDMI port

  • 1 x USB 3.2 Gen 2 Type-A / USB 3.2 Gen 1 port (red)

  • 1 x USB Type-C port, with USB 3.2 Gen 1 support

  • 1 x Q-Flash Plus button

  • 1 x RJ-45 port

  • 2 x USB 3.2 Gen 1 ports

  • 3 x audio jacks

• Internal I/O Connector:

  • 1 x 24-pin ATX main power connector

  • 1 x 8-pin ATX 12V power connector

  • 1 x CPU fan header

  • 1 x CPU fan/water cooling pump header

  • 3 x system fan headers

  • 2 x addressable LED strip headers

  • 2 x RGB LED strip headers

  • 1 x CPU cooler LED strip / RGB LED strip header

  • 2 x M.2 Socket 3 connectors

  • 4 x SATA 6Gb/s connectors

  • 1 x front panel header

  • 1 x front panel audio header

  • 1 x USB Type-C header, with USB 3.2 Gen 1 support

  • 1 x USB 3.2 Gen 1 header

  • 2 x USB 2.0/1.1 headers

  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

  • 1 x Clear CMOS jumper

• Form Factor: ATX

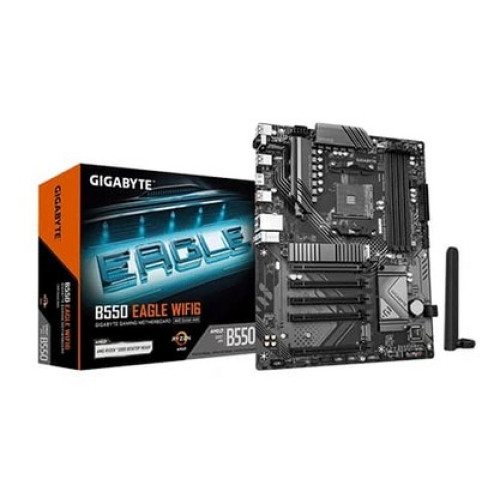

(Note: Product Image is indicative purpose only)
